This manual helps you to optimize the usage of the DECT telephone in combination with the PBX. Please use this manual at initial operation. Some features differ from the features described in the manufacturer's documentation.

We wish you success and joy in working with your new DECT telephone and this manual!

Subject to alterations

Version 1 / 05.2016 (EN)

Before you begin using your new Panasonic DECT system, we would like to provide you with a brief overview of the steps required for installation.

1. Add DECT base station (KX-TGP600) on the administration portal.
2. Add DECT mobile handsets (KX-TPA60, KX-TPA65, KX-UT121, KX-UT131) on the administration portal.
3. Add a phone extension for the DECT mobile handsets on the administration portal and assign the respective mobile handset.
4. Register mobile handsets to the base station.

The following pages provide a detailed description of the individual steps.

Installation of the KX-TGP600 DECT base station with your telephone system:

To register mobile handsets to your phone system follow the steps below:

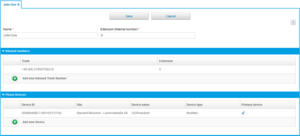

To add an extension, follow the next steps:

Press and hold the key  on the base station for approx. 4 seconds until the LED starts to blink slowly. THen press the "OK" key on the mobile handset.

The mobile handset now scans for the DECT base station.

Following you need to register the mobile handset to the base station. You can do it directly over the menu of your Panasonic mobile handset.

1. You will see this on the display: "Register Unit". Press OK.
2. Now press (and hold) the OK button for approx. 5 seconds.
3. The mobile handset registers automatically.
4. After registration you will see following information on the display: Time and Targets, "extension:name"

When accessing the voice menu of your voicemail system for the first time, you should also set up your personal answering system.

Please refer to the voicemail leaflet for detailed information.

1. Dial *793 on your Panasonic mobile handset or press button to access the voice menu of your voice mail system.

2. Then select “0 Mailbox Options” to set up your voice mail.

3. Now press:

• „1“, to record a message in the event you are unavailable.
• „2“, to record a message in the event if the hone is busy.
• „3“, to record your name.
• „4“, to record a temporary announcement.

4. Now record your message and press “#” to end the recording.

1. Dial *793 on your handset or

2. Press   or

3. Dial the extension numnber, which is assigned to your mailbox (see administration portal).
